L-MAX166

Thelargeanddeepgroovesontheshouldersaimtoincreasethedrivingperformance.Threemain longitudinal groovesprovide good directional stabilityandreduce irregularwearand areadapted&nbs

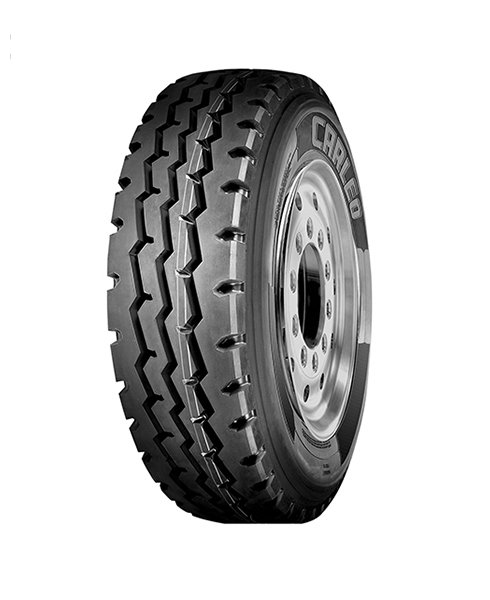

The large and deep grooves on the shoulders aim to increase the driving performance. Three main longitudinal grooves provide good directional stability and reduce irregular wear and are adapted to various conditions. Wider running surface and the puncture resistance formula reduce abrasion.

Size	PR	LI	SS	Standard Rim	OTD	Section Width	Overall Diameter	Single load/Kg	Dual load/Kg	Single Inflation pressure/kPa
7.00R16	14	144/148	M	5.50F	12	200	775	1320	1180	770
7.50R16	14	122/118	L	6.00G	12.5	215	805	1500	1350	770
8.25R16	16	128/124	L	6.50H	13.0	235	855	1800	1600	770
8.25R20	16	139/137	K	6.5	12.5	236	974	2430	2300	930
9.00R20	16	144/142	K	7.0	15.0	259	1019	2800	2650	900
10.00R20	18	149/146	K	7.5	16.0	278	1054	3250	3000	930
11.00R20	18	152/149	K	8.0	16.5	293	1085	3550	3250	930
12.00R20	20	156/153	K	8.5	17.0	315	1125	4000	3650	900
11R22.5	16	146/143	M	8.3	15.0	279	1054	3000	2725	830
12R22.5	18	152/149	M	9.00	16.5	300	1085	3550	3250	930
315/80R22.5	20	156/150	M	9.00	15.5	312	1076	4000	3350	850
12.00R24	20	160/157	K	8.5	14.5	315	1226	4500	4125	900
13R22.5	18	154/151	L	9.75	17.0	320	1124	3750	3450	830
